WGZ Type Drum Gear Coupling With Brake Wheel

WGZ type drum gear coupling

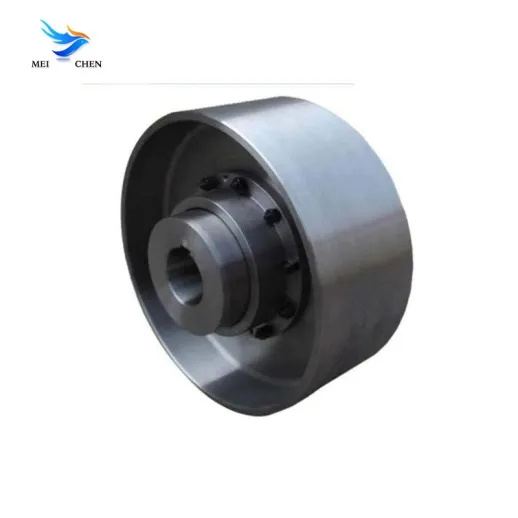

WGZ type drum gear coupling with brake wheel is a special gear coupling, which is composed of an inner gear ring with the same number of teeth and a flange half coupling with external teeth. Its external teeth are divided into two types of tooth shapes: straight teeth and drum teeth. The drum gear coupling allows a larger angular displacement, improves the contact conditions of the teeth, improves the ability to transmit torque, and prolongs the service life.

Main features:

1. Compact structure: Compared with the straight gear coupling, the structure is more compact.

2. Strong load-bearing capacity: It has a large load-bearing capacity and is suitable for high torque transmission.

3. High transmission efficiency: The transmission efficiency is high and the energy loss is reduced.

4. Low noise: The noise is low during operation, which is suitable for occasions with noise requirements.

5. Long maintenance cycle: The maintenance cycle is long, which reduces the maintenance frequency3.

Uses:

WGZ type drum gear coupling with brake wheel is mainly used in occasions that require frequent starting and braking, such as metallurgy, mining, lifting and transportation industries.

Application scenarios:

WGZ type drum gear coupling with brake wheel is suitable for various industrial applications that require high torque transmission and angular displacement compensation, such as heavy machinery, mining equipment, metallurgical equipment, etc. Due to its compact structure, strong load-bearing capacity, high transmission efficiency and other characteristics, it is particularly suitable for use in transmission systems with limited space and high reliability.

Product advantages:

1. Good compensation performance: Since the outer gear sleeve is a drum gear, the coupling can avoid angular contact between the inner and outer teeth when working, allowing the angular displacement of the two shaft axes to be ±1.5°, and can also work reliably when the angular displacement is 2-3°.

2. Strong load-bearing capacity: After carburizing and quenching treatment, the meshing tooth surface of the drum gear has high load-bearing capacity and can withstand heavy loads and impact loads. Under the same angular displacement, the load-bearing capacity is increased by 15-20% compared with the straight gear coupling.

3. Strong wear resistance: After forced thin oil lubrication, the wear of the tooth surface is greatly reduced, and the wear amount is about 10% of grease lubrication. The circulating thin oil can take away the rolling heat and the heat generated by the friction of the gear teeth, and prevent the allowable contact stress on the surface of the gear tooth material from decreasing.

4. Long service life: The design of the drum-shaped tooth can improve the contact conditions of the teeth, improve the ability to transmit torque, and extend the service life.

5. Compact structure: The WGZ type drum-shaped gear coupling with brake wheel has the advantages of compact structure, small turning radius, high transmission efficiency, low noise and long maintenance cycle.

6. Good sealing: Good sealing, reliable use, easy loading and unloading and maintenance.

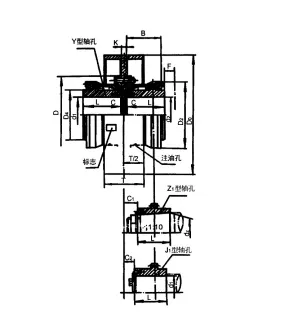

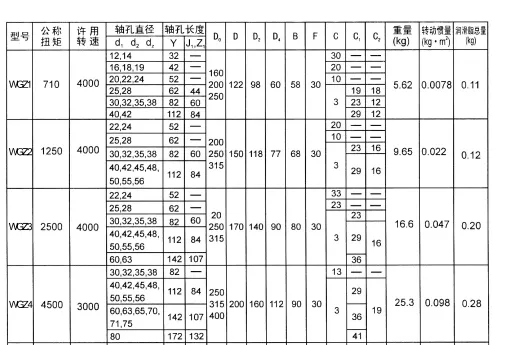

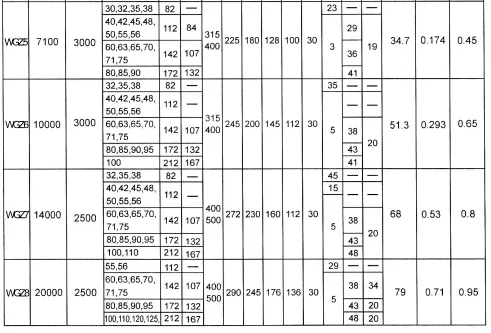

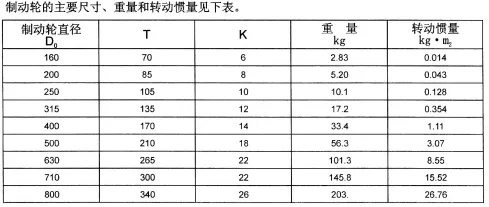

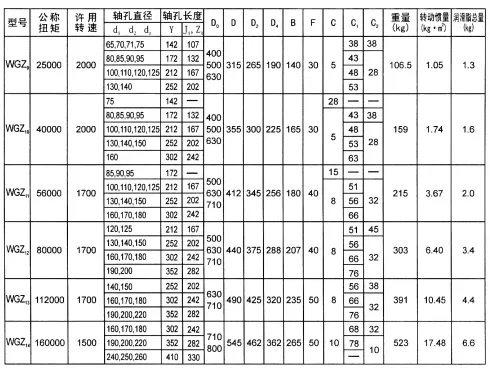

Detailed specifications:
