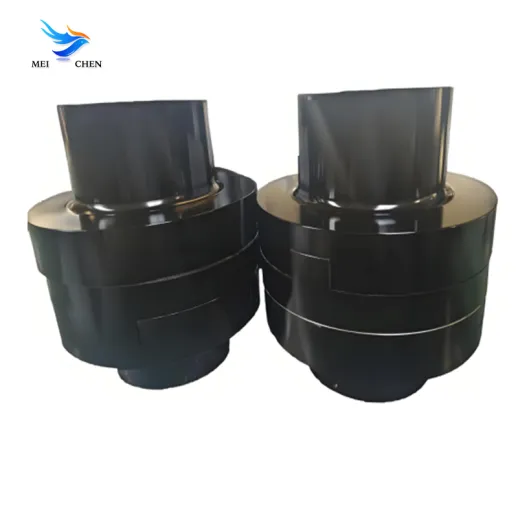

SL Coupling (Cross Quick Coupling)

Main features:

It consists of two half couplings and an intermediate disk.

The end face of the half coupling is grooved, and the intermediate disk has convex teeth on both sides, which can slide in the groove.

The slider is annular and usually made of steel or wear-resistant alloy to achieve zero clearance operation.

The center slider is connected to the sleeves on both sides through the slots with 90° relative distribution on both sides to transmit torque.

Use:

Suitable for transmission systems with low speed and large torque transmission.

It is commonly used in general common motors, and can also be used to connect servo motors in some occasions.

The relative displacement between the two shafts is corrected by the sliding of the center slider.

SL cross slider coupling has been widely used in mechanical transmission systems due to its simple structure, large torque transmission and strong displacement compensation ability.

Application scenarios:

1. Manufacturing industry

Transmission systems of various machine tools, production lines and automation equipment to ensure efficient and stable operation of equipment.

‌2. Energy industry‌

Wind power generation, petrochemical and other fields, due to its excellent performance parameters, can cope well with extreme environments such as high temperature and high pressure.

‌3. Transportation industry‌

Railway transportation and urban public transportation systems, especially widely used in vehicle drive systems.

‌4. Agricultural machinery‌

Used to connect different parts of agricultural machinery, such as the engine and transmission of tractors, the cutter and conveying device of harvesters, etc.

‌5. Light industry machinery‌

Plays a key role in the transmission connection of equipment such as printing machines and packaging machines to ensure the smooth progress of production.

‌6. Mining machinery‌

Used to connect various parts of mining machinery, such as crushers, conveyors, etc., to adapt to the harsh working environment of mining machinery.

‌7. Construction machinery‌

Plays a role in the power transmission of equipment such as tower cranes, cranes, concrete mixers, etc., to ensure the safety and efficiency of construction.

Product advantages:

1. High strength and wear resistance: Made of high-quality materials, it has extremely high strength and good wear resistance;

2. Strong adaptability: It can adapt to a large range of axial and angular deviations and effectively absorb vibration and impact;

3. Smooth and reliable operation: The well-designed sliding mechanism makes the equipment run more stable and reliable;

4. Easy installation and maintenance: The structure is simple and clear and easy to install and maintain.

Application areas:

1. Mechanical industry: Mainly used to connect two rotating shaft systems, transmit torque and power, have good shock absorption performance, and reduce the vibration and noise of mechanical equipment during operation.

2. Power industry: Applied in fields such as wind power generation and hydropower generation to ensure the conversion and transmission of electric energy, and have high requirements for the performance and reliability of the coupling.

3. Petroleum industry: Applied in various pumps, compressors and other equipment, with harsh working environment, and high requirements for the wear resistance, corrosion resistance and high temperature resistance of the coupling.

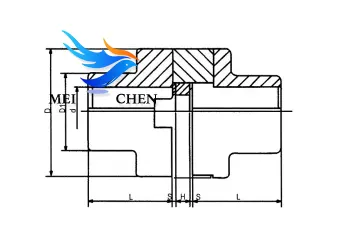

Detailed specifications:

型号 Model	公称转矩 Nominal torque	许用转速	轴孔直径						转动惯量  Moment of	重量
	Tn	Allowable	shaft	D	D1	L	H	S	inertia	Weight
	(N ·m)	speed	diameter							(kg)
		N	d
		(r/min)
SL70	120	250	15~18	70	32	42	14		0.002	1.5
								0.5
SL90	250	250	20~30	90	45	52	14		0.008	2.6
SL100	500	250	36~40	100	60	70	19		0.026	5.5
SL130	800	250	45~50	130	80	90	19		0.07	10
SL150	1250	250	55~60	150	95	112	19		0.14	15.5
SL170	2000	250	65~70	170	105	125	24		0.25	22.4
SL190	3200	250	75~80	190	110	140	29		0.5	31.5
SL210	5000	250	85~90	210	130	160	33		0.9	45
								1
SL240	8000	250	95~100	240	140	180	33		1.6	59.5
SL260	9000	250	100~110	260	160	190	33		2	76
SL280	10000	100	110~120	280	170	200	33		3	94.3
SL300	13000	100	120~130	300	180	210	43		4.3	111
SL320	16000	100	130~140	320	190	220	43		5.7	129
SL340	20000	100	150	340	210	250	48		8.4	162
SL360	32500	100	160	360	240	280	48		19.2	258
SL400	38700	80	170	400	260	300	48		26.1	305
SL460	63000	70	200	460	300	350	58		62.9	560
